Fiber laser protective lens is one of the most frequently replaced consumables within the optical system of a laser cutting head. This article will guide you through the selection of appropriate protective lenses—covering their functions, selection criteria, and routine maintenance—to help you reduce overall maintenance costs.
Definition and Main Functions of a Fiber Laser Protective Lens

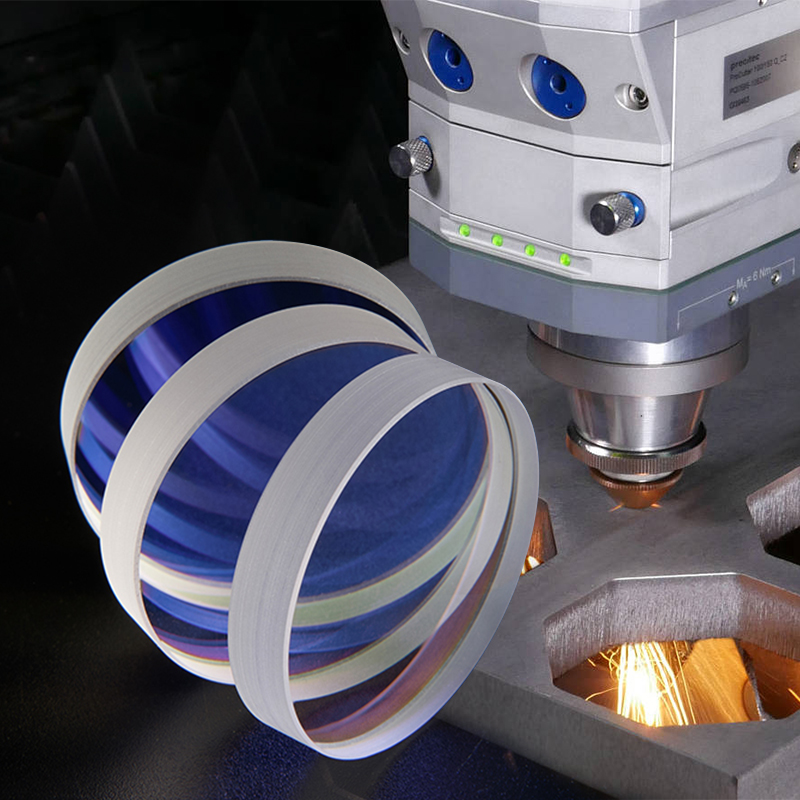

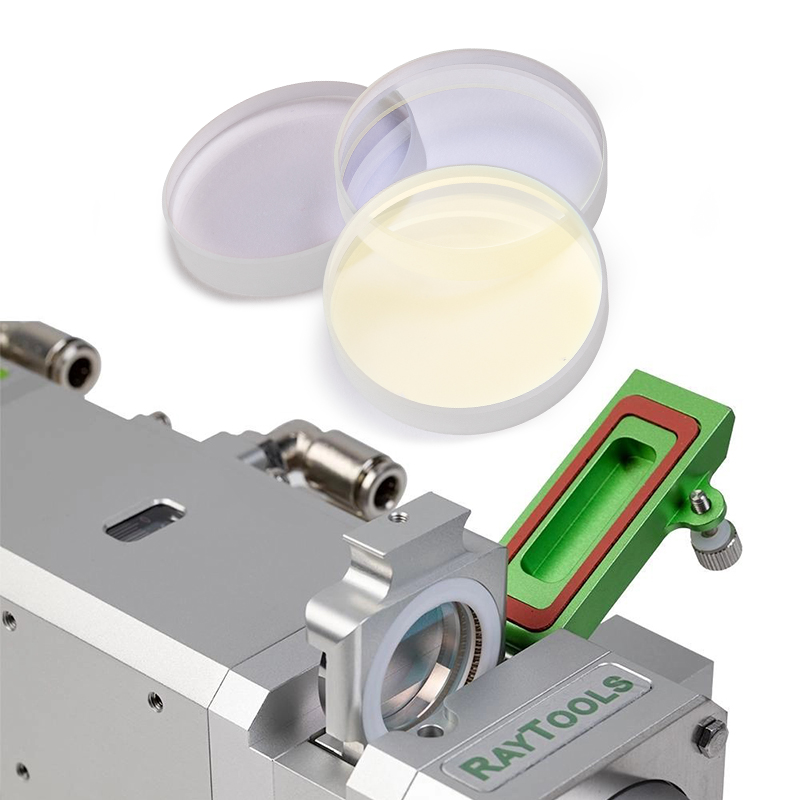

A fiber laser protective lens, also known as a protective window, is located below the focusing lens, close to the processing area. It blocks metal spatter, dust, and fumes generated during processing, reducing contamination and damage to internal optical components.
What Is the Difference Between a Fiber Laser Protective Lens, a Focusing Lens, and a Collimating Lens?
Although protective lenses, focusing lenses, and collimating lenses in fiber laser cutting heads are all optical components, they serve different functions.
Collimating lens: Converts the divergent light emitted from the fiber into parallel light.
Focusing lens: Converges the parallel beam onto the workpiece surface to form a high-energy-density spot.
Protective lens: Primarily isolates cutting spatter and contaminants to protect upstream optical components.
These three components differ in optical design, installation position, and performance requirements. For buyers, the first step is to confirm whether the component requiring replacement is a protective window, collimating lens, or focusing lens. Only then should they verify the dimensions, material, and coating specifications.
How to Choose a Fiber Laser Protective Lens
1. Verify Laser Cutting Head Model and Compatibility
Identifying the exact model of your laser cutting head is the first step in selecting the correct protective lens. Different brands and models may utilize lenses with varying dimensions (diameter and thickness), mounting configurations, and optical specifications.
2. Check Lens Diameter and Thickness
When purchasing, ensure the diameter and thickness of the protective lens are measured accurately. The diameter must match the design specifications of the lens holder, while the thickness must align with the mounting requirements of the existing assembly and satisfy the optical configuration mandated by the equipment.
3. Select Appropriate Lens Substrate and Optical Quality

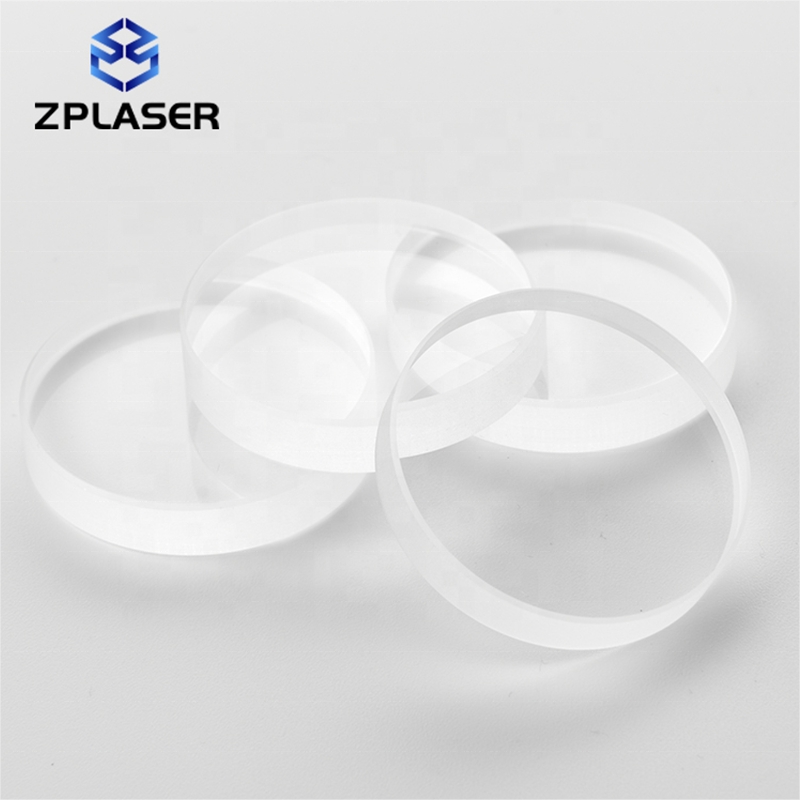

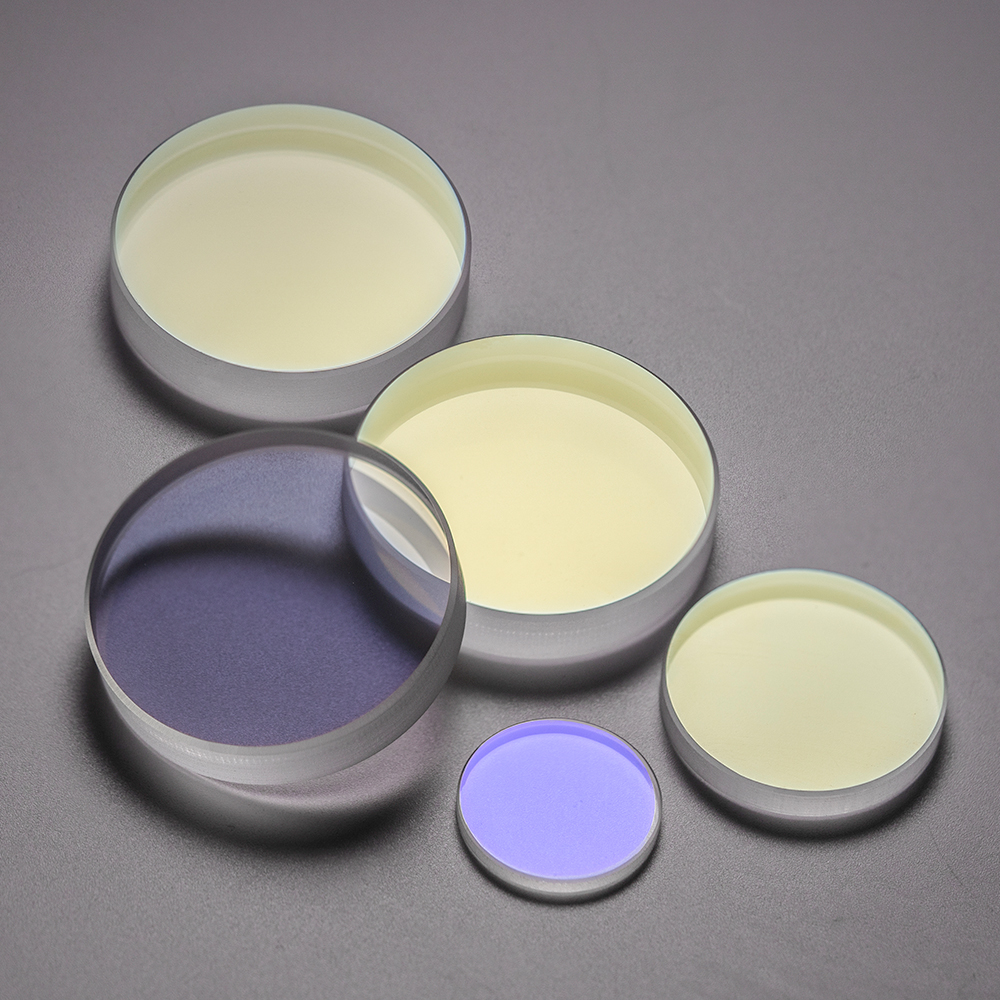

Fused silica is a common substrate material for fiber laser protective windows. It is primarily available in two grades:
JGS1 typically refers to synthetic fused silica, which offers high material purity and is suitable for applications requiring superior optical uniformity and high resistance to laser-induced damage.
JGS2 typically refers to optical-grade fused silica; it may contain trace amounts of bubbles and impurities, but it is more cost-effective, making it a practical choice for low-to-medium power applications where budget is a key consideration.
4. Verify Coating Type and Anti-Reflective Performance
Protective windows for fiber lasers typically feature anti-reflective coatings, which minimize light reflection from the lens surface and enhance laser transmission efficiency at the target wavelength.
5. Align with Laser Wavelength and Power Requirements
The laser wavelength dictates the required spectral transmission range and the design of the anti-reflective coating; a mismatch can negatively affect transmittance.
6. Consider the Material Being Processed and the Operating Environment
The actual performance of a protective window is influenced by the specific processing conditions. Factors such as the material type, sheet thickness, and cutting parameters all affect the rate at which the window becomes contaminated, as well as the thermal load it must withstand.
Common Mistakes When Choosing a Fiber Laser Protective Lens
1. Focusing solely on diameter while ignoring thickness and mounting position.
Selecting a replacement lens based only on its outer diameter does not guarantee that it will meet the original optical design requirements, even if it fits into the lens holder.
2. Comparing only price while overlooking optical quality and coating performance.
A lower-priced lens does not necessarily translate to a lower total cost of ownership. If the material quality, surface finish, or coating performance of a lens fail to meet application requirements, it may lead to an increased risk of damage, more frequent replacements, and a heavier burden of equipment maintenance.
3. Assuming that higher laser power requires larger lens dimensions
While laser power influences the optical and thermal performance requirements of a lens, it does not, by itself, dictate the physical dimensions of the lens.
4. Failing to investigate the root cause of frequent lens damage
If the protective lens repeatedly experiences erosion, black spots, or severe contamination in a short period of time, simply replacing the lens may not solve the problem. It is necessary to promptly investigate the cleanliness and supply status of the auxiliary gas, the sealing condition of the cutting head, the splashing situation during processing, the installation status of the lens, and the cleaning operation, in order to identify the cause of the damage.
Routine Maintenance and Replacement of Fiber Laser Protective Lenses
1. What factors affect the service life of fiber laser protective lenses?
The service life of a fiber laser protective lens is influenced by a combination of factors, primarily including laser power and actual optical load, the quality of assist gases, the materials being processed and the specific processing techniques used, the quality of the lens material and its coatings, procedures for cleaning and replacement, as well as the sealing and overall operating condition of the cutting head.
2. How do you determine whether a fiber laser protective lens needs to be replaced?
If any of the following conditions occur, the protective lens should be inspected, and a decision on whether to replace it should be made based on the severity of the damage:
Visible scratches, cracks, or chips: Physical surface damage can interfere with beam transmission; in such cases, the lens should be replaced immediately.
Ablation or coating damage: If there are signs of ablation, localized discoloration, or other clear anomalies, evaluate whether the lens can still be used safely and reliably.
Abnormal cutting performance: If you observe a decline in cutting quality, unstable piercing, or incomplete cuts, inspect the protective lens while also checking other potential factors, such as the focal point, nozzle, assist gas, and cutting parameters.
3. How to properly maintain fiber laser protective lenses?
Regularly inspect the lens surface: Check for dust, oil, scratches, or signs of ablation (burn marks).

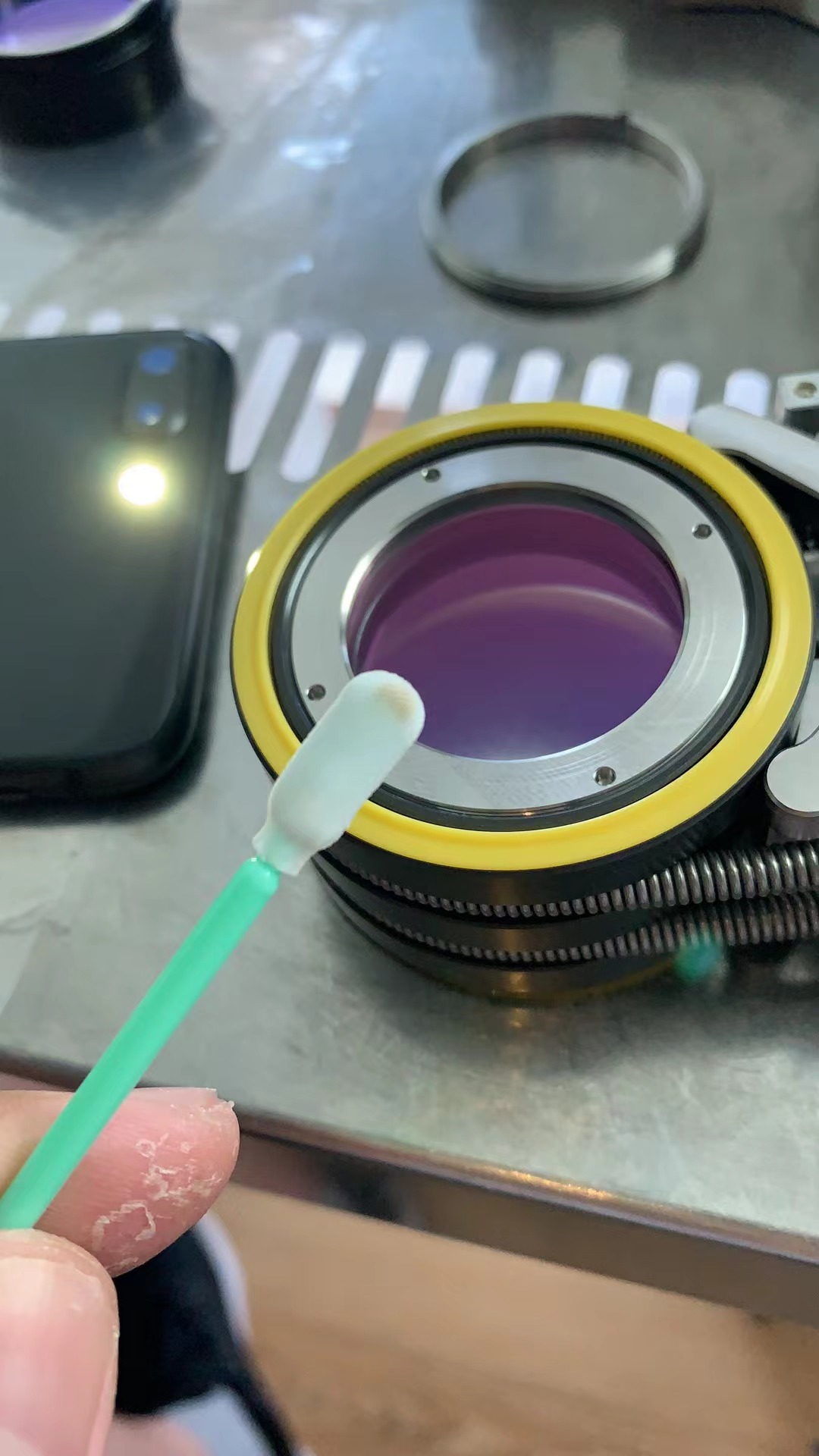

Use correct cleaning methods: Employ cleaning materials and tools specifically designed for protective lenses; avoid using unverified solvents or unsuitable wiping materials.
Avoid direct contact with optical surfaces: Wear clean gloves or finger cots during handling, and follow the equipment manufacturer’s operational guidelines to prevent fingerprints, oils, or particles from adhering to the lens surface.
Ensure proper installation and storage: Install the lenses according to the specified requirements. Store spare lenses in clean, dry, and appropriately protective packaging to shield them from dust, moisture, and unnecessary contact.
Conclusion
Selecting the appropriate protective lens for a fiber laser requires a comprehensive evaluation of several factors: the cutting head model, lens dimensions, substrate material, optical coatings, laser wavelength, power levels, and the specific operating environment. Relying solely on appearance, diameter, or unit price is insufficient to ensure compatibility with your equipment.
For laser equipment manufacturers, industrial laser processing enterprises, and suppliers of consumables, both precise selection and standardized maintenance are critical. Verifying product specifications helps prevent procurement errors, while following proper inspection, cleaning, and replacement procedures reduces the risk of premature damage and helps control consumable costs.
If you are looking for fiber laser protective lenses, please contact ZPLASER team. We can assist you in verifying lens specifications and equipment compatibility, as well as evaluating the optimal materials, coatings, and OEM/ODM customization options tailored to your specific application.
