What Should You Know About Installing and Maintaining a Fiber Laser Collimating Lens? 1, Check lens specifications and condition before installation Prior to installation, verify the lens model, focal length, dimensions, and coating requirements. Inspect the lens surface for any visible contamination, scratches, or other defects. Additionally, ensure that the lens mount and the installation area are clean to prevent dust from entering the optical system. 2, Proper Installation and Verification of Optical Alignment During installation, the lens must be secured according to the orientation and assembly method specified for the equipment; avoid touching the lens surface. Once installed, verify that the lens is correctly positioned and firmly secured, and ensure that all relevant seals or positioning components are in proper condition. 3, Cleaning and Routine Maintenance

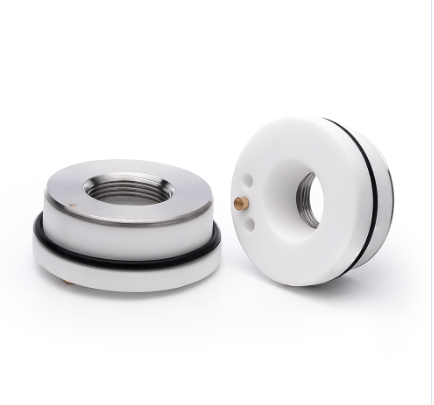

A fiber laser cutting head consists of key components such as a protective lens, collimating and focusing lenses, a nozzle, a sensor head, and a ceramic ring.

Operation & Maintenance Guidelines The cleanliness of the protective lens directly affects the service life of the laser head. Proper handling and maintenance can help extend the lens replacement cycle. 1. Install in a Clean Environment 2. Wear Protective Gloves 3. Handle by the Edges 4. Clean Properly 5. Inspect Regularly

Applications of Fiber Laser Cutting Heads 1, Automotive Manufacturing: Suitable for precision cutting of automotive parts, structural components, brackets, and metal housings. 2, Aerospace: Enables high-precision cutting of difficult-to-machine materials such as titanium alloys and high-temperature alloys, 3,Mechanical Manufacturing: Can be used for machining mechanical equipment parts, supports, gears, and metal structural components. 4, Electrical and Electronic Equipment: Suitable for machining electrical cabinets, equipment housings, metal brackets, and other precision sheet metal parts.

When selecting a fiber laser cutting head, it is recommended to consider the following three dimensions: 1. Laser power matching: The applicable power of the cutting head should match the output power of the laser. For example, for equipment with power ratings of 1.5kW, 2kW, 3kW, 3.3kW, and 6kW, a cutting head with the corresponding power range should be selected. 2. Focus adjustment method: Manual focusing is suitable for production scenarios with relatively fixed processing conditions; automatic focusing is suitable for scenarios requiring frequent focus adjustments or processing materials of different thicknesses, reducing manual adjustments. 3. Processing type: Standard planar cutting heads can be selected for flat plate cutting; for pipe, profile, or 3D curved surface processing, corresponding pipe or 3D cutting heads should be selected.

How to adjust the laser nozzle to achieve the best cutting resultsIn metal laser cutting production, problems such as rough cut surfaces, slag buildup, unstable perforation, and frequent consumable damage are mostly not due to parameter issues, but rather to coaxial misalignment between the laser be

Although the focusing lens is just one optical component in a laser cutting head, it has a significant impact on cutting quality, processing efficiency, equipment stability, and the lifespan of the optical system. If you are looking for high-quality fiber laser focusing lenses or other fiber laser spare parts, it is especially important to choose a supplier with reliable manufacturing processes and professional technical support. We offer a range of optical accessories—including fiber focusing lenses, fiber protective lenses, fiber collimating lenses, nozzles, and ceramic bodies—compatible with mainstream fiber laser cutting heads, and we provide professional selection recommendations based on different laser powers and application scenarios.

Stainless steel is corrosion-resistant, highly durable, and easy to clean, making it widely used in industries such as machinery, medical equipment, automotive, construction, and kitchenware. However, due to its hardness and unique thermal conductivity, traditional processing methods often result in

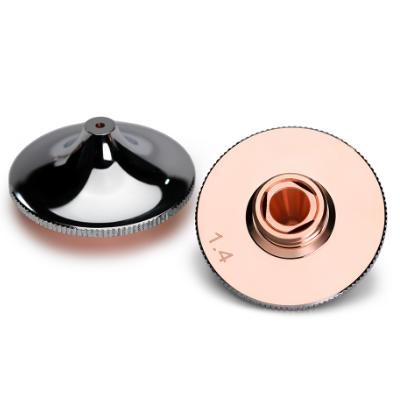

Laser-cutting machines are an integral part of modern manufacturing and processing, renowned for their precision, speed, and versatility. Central to the functionality of these machines is the nozzle, a critical component that directs the laser beam and assists in the flow of gas during the cutting process. The nozzle plays a vital role in determining the quality and efficiency of your cut, influencing factors such as beam focusing, gas flow, and heat management. Understanding the different types of nozzles, materials, and sizes can significantly impact the performance and maintenance of your laser-cutting machine.
