Routine Maintenance And Replacement of Fiber Laser Focusing Lenses

Daily Maintenance and Replacement of Fiber Laser Focusing Lenses

Proper maintenance extends the service life of the lens and ensures processing stability.

1. Establish a standardized cleaning procedure

(1) Wear cleanroom gloves before handling to prevent direct finger contact with the lens surface.

(2) Use compressed air to gently blow away dust and particles from the lens surface; do not wipe directly, as this may scratch the lens.

(3) For stubborn stains, use specialized lens tissue moistened with an appropriate amount of professional optical cleaning solution. Wipe gently from the center of the lens outward in a single direction; do not wipe back and forth repeatedly over the same area.

(4) After cleaning, inspect the lens under adequate lighting for any remaining stains, scratches, burn marks, or coating damage. If any abnormalities are found, further assessment is required to determine if the lens needs replacement.

 2. Key Points for Long-Term Protection

(1) Make effective use of the protective lens; it is a crucial component for shielding the expensive focusing lens from spatter and damage. Promptly replacing a dirty or damaged protective lens is the most cost-effective way to safeguard the focusing lens, as the replacement cost of the protective lens is far lower than that of the focusing lens itself.

(2) Ensure that the assist gas is clean, dry, and supplied at a stable pressure. Assist gas containing moisture, oil, or particulate impurities can easily contaminate the lenses and compromise cutting quality.

(3) Regularly record and monitor key performance indicators; this preventive maintenance not only extends the service life of optical laser equipment part but also helps reduce the equipment failure rate.

3. How to Replace the Focusing Lens

When installing or removing the focusing lens, strictly follow the assembly orientation specified by the cutting head manufacturer. Ensure the lens is not installed backwards or improperly seated, and prevent it from being subjected to impacts, crushing, or incorrect orientation. Maintain the cleanliness of the lens surface throughout the process, ensuring it is free of stains or fingerprints; even minor damage can impair the lens's focusing performance.

FAQ

1. Are the focusing lens and the protective lens the same component?

No, they are not. The focusing lens is responsible for focusing the laser beam onto the workpiece surface, directly influencing laser energy density, cutting precision, and processing efficiency. In contrast, the protective lens is positioned in front of the focusing lens; its primary function is to prevent smoke, metal spatter, and other contaminants from entering the cutting head, thereby protecting the focusing lens and collimating lens from contamination or damage.

2. What is the difference between a focusing lens and a collimating lens?

Although both are core optical laser equipment partof a laser cutting head, they serve different functions. The collimating lens transforms the divergent laser beam emitted from the fiber into a parallel beam, providing a stable beam for the focusing stage; the focusing lens then reconverges the parallel beam into a focal point with high energy density to cut the material.

3. How often does the focusing lens need to be replaced?

There is no fixed replacement interval; it depends on laser power, the material being processed, operating duration, and the working environment. It is recommended to regularly inspect the condition of the lens. If scratches, burn marks, or coating damage are detected, or if light transmission remains poor after cleaning, the lens should be replaced immediately to avoid compromising cutting performance or damaging other laser equipment part.

4. Is a longer focal length for the focusing lens better?

Not necessarily. Different focal lengths are suited to different processing requirements.

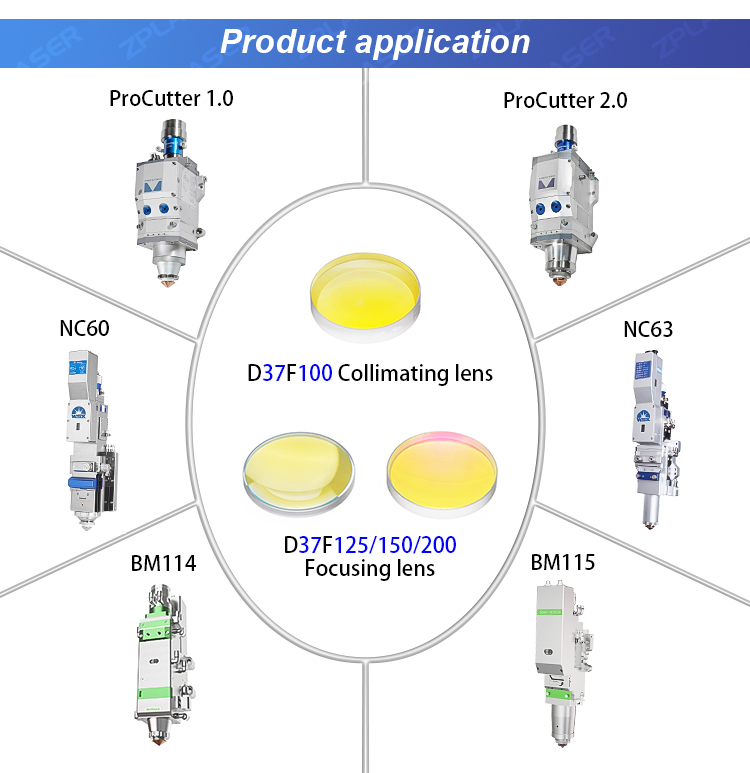

5. Are focusing lenses compatible with all fiber laser cutting heads?

Not all focusing lenses are interchangeable. Before purchasing, it is recommended to verify the cutting head brand and model, lens specifications, and laser power to ensure the correct product is selected.

6. How do you choose a reliable supplier of focusing lenses?

Beyond price, you should place greater emphasis on product quality and technical service.

7. Can I use tissues or rags to wipe dirty lenses?

No. Ordinary paper and cloth contain hard fibers that can scratch the lenses; you should only use specialized optical cleaning wipes and professional cleaning solutions.
